ReactのMaterial UIのステッパーを縦に表示する

この記事は 2025 年 6 月 23 日に投稿しました。

目次

  1. はじめに
  2. ReactのMaterial UIのステッパーを縦に表示する
  3. おわりに

1. はじめに

こんにちは、iOS のエディタアプリPWEditorとその後継PWEditor2の開発者の二俣です。
今回はReactMaterial UIステッパーを縦に表示する方法についてです。

目次へ

2. ReactのMaterial UIのステッパーを縦に表示する

ReactMaterail UIステッパーを縦に表示するには、以下のような実装にします。

実装例

create-react-appで作成したTypeScriptのプロジェクトです。

index.tsx
import React from "react";
import ReactDOM from "react-dom/client";
import App from "./App";

const root = ReactDOM.createRoot(
  document.getElementById("root") as HTMLElement
);
root.render(
  <React.StrictMode>
    <App />
  </React.StrictMode>
);

App.tsx

import * as React from "react";
import Box from "@mui/material/Box";
import Stepper from "@mui/material/Stepper";
import Step from "@mui/material/Step";
import StepLabel from "@mui/material/StepLabel";
import StepContent from "@mui/material/StepContent";
import Button from "@mui/material/Button";
import Paper from "@mui/material/Paper";
import Typography from "@mui/material/Typography";

const steps = [
  {
    label: "Select campaign settings",
    description: `For each ad campaign that you create, you can control how much
              you're willing to spend on clicks and conversions, which networks
              and geographical locations you want your ads to show on, and more.`,
  },
  {
    label: "Create an ad group",
    description:
      "An ad group contains one or more ads which target a shared set of keywords.",
  },
  {
    label: "Create an ad",
    description: `Try out different ad text to see what brings in the most customers,
              and learn how to enhance your ads using features like ad extensions.
              If you run into any problems with your ads, find out how to tell if
              they're running and how to resolve approval issues.`,
  },
];

export default function App() {
  const [activeStep, setActiveStep] = React.useState(0);

  const handleNext = () => {
    setActiveStep((prevActiveStep) => prevActiveStep + 1);
  };

  const handleBack = () => {
    setActiveStep((prevActiveStep) => prevActiveStep - 1);
  };

  const handleReset = () => {
    setActiveStep(0);
  };

  return (
    <Box sx={{ maxWidth: 400, margin: 8 }}>
      <Stepper activeStep={activeStep} orientation="vertical">
        {steps.map((step, index) => (
          <Step key={step.label}>
            <StepLabel
              optional={
                index === steps.length - 1 ? (
                  <Typography variant="caption">Last step</Typography>
                ) : null
              }
            >
              {step.label}
            </StepLabel>
            <StepContent>
              <Typography>{step.description}</Typography>
              <Box sx={{ mb: 2 }}>
                <Button
                  variant="contained"
                  onClick={handleNext}
                  sx={{ mt: 1, mr: 1 }}
                >
                  {index === steps.length - 1 ? "Finish" : "Continue"}
                </Button>
                <Button
                  disabled={index === 0}
                  onClick={handleBack}
                  sx={{ mt: 1, mr: 1 }}
                >
                  Back
                </Button>
              </Box>
            </StepContent>
          </Step>
        ))}
      </Stepper>
      {activeStep === steps.length && (
        <Paper square elevation={0} sx={{ p: 3 }}>
          <Typography>All steps completed - you&apos;re finished</Typography>
          <Button onClick={handleReset} sx={{ mt: 1, mr: 1 }}>
            Reset
          </Button>
        </Paper>
      )}
    </Box>
  );
}

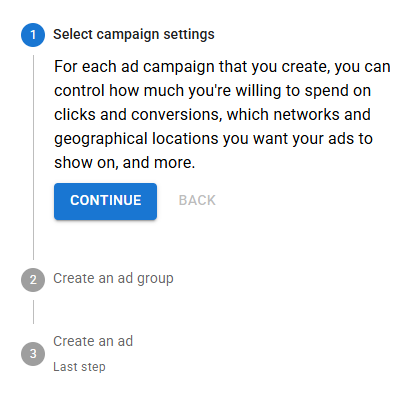

実行結果

リファレンス

React

Material UI

Stepper

Stepper(API)

create-react-app

TypeScript

目次へ

3. おわりに

ステッパーは縦にも表示できるようです。

紹介している一部の記事のコードはGitlabで公開しています。
興味のある方は覗いてみてください。

目次へ
